3. Integrating Protocol Buffers with Connext

Protocol Buffers Extension allows your applications to use their existing Protocol Buffers messages with Connext. It uses a generative process to produce C++ source code from .proto files. The generated code enables Connext applications to use the Protocol Buffers types with DDS Topics.

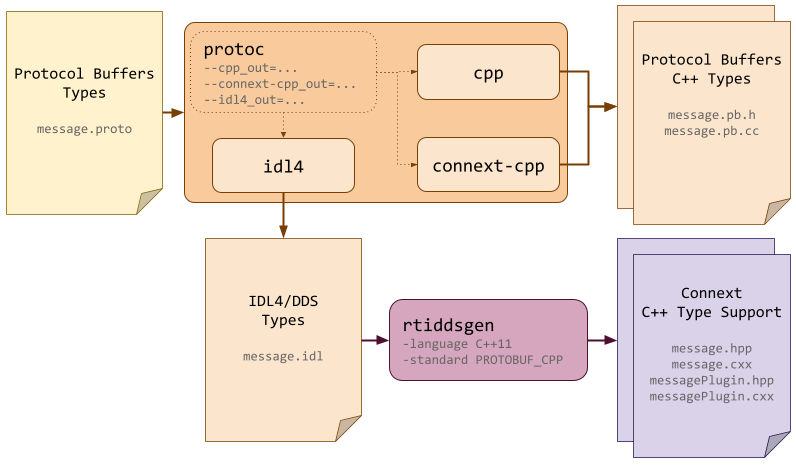

Code Generation Workflow

There are two methods to generate the necessary source code from an input .proto file using Protocol Buffers Extension:

  • Two-phase generation. Execute protoc using the RTI plugins and all necessary options, then run rtiddsgen on the resulting IDL file. We recommend this workflow because it simplifies the protoc configuration process.

  • Single-phase generation. Invoke rtiddsgen using the .proto file as the direct input to generate all necessary files. This streamlined method is ideal for simple .proto files that do not contain includes or require specific protoc configuration options.

3.1. Two-Phase Code Generation

In phase one, the protocol buffers compiler (protoc) is invoked to:

  • Convert each .proto file into an equivalent .idl file.

  • Generate C++ source code for each Protocol Buffers type.

In phase two, all input .proto files are processed by three protoc plugins:

  • The Protocol Buffers Extension IDL4 Converter Plugin (idl4) generates an .idl file for each input .proto file. The generated .idl files use the type system defined by the Extensible and Dynamic Topic Types for DDS specification (DDS-XTypes) from the Object Management Group (OMG).

  • The built-in C++ code generator (cpp), part of the Protocol Buffers distribution, generates the C++ classes associated with each Protocol Buffers type.

  • The Protocol Buffers Extension C++ Code Generator Plugin (connext-cpp) decorates the C++ code produced by cpp so that it can be efficiently integrated with Connext.

Phase two relies on RTI Code Generator (rtiddsgen) to process the .idl files generated by protoc. rtiddsgen produces the additional C++ source code necessary to use Protocol Buffers types as DDS Topics within Connext applications.

3.2. Single-Phase Code Generation

You can generate code from a .proto file in a single step using rtiddsgen. When a .proto file is used as input, rtiddsgen automatically invokes protoc internally using the RTI plugins.

Use the -protocPath option to specify the protoc executable location if it is not in your system path.

Use the -protocOption flag to pass specific parameters directly to protoc.

3.3. Code Generation Commands

Table 3.1 shows the two commands used to generate the necessary source code from an input .proto file using the two-phase code generation method. It lists the input files, the commands used to generate the output, and the resulting files.

Table 3.1 Protocol Buffers Extensions Code Generation Commands

Command

Input

Output


protoc --idl4_out=<outputdir> \
       --cpp_out=<outputdir> \
       --connext-cpp_out=<outputdir> \
       <input>

message.proto

  • message.idl

  • message.pb.h

  • message.pb.cc


rtiddsgen -language C++11 \
          -standard PROTOBUF_CPP \
          <input>

message.idl

  • message.hpp

  • message.cxx

  • messagePlugin.hpp

  • messagePlugin.cxx

In the example protoc command above, all plugins are run at once. This is not a strict requirement; each protoc plugin can be invoked independently. However, it is recommended to run protoc with all plugins in a single command because other options (for example, #include paths) should be kept consistent across different protoc calls.

Important

If the plugins are called independently, RTI’s connext-cpp plugin must be run with (or after) the built-in cpp plugin.

If an input .proto file imports the RTI omg/dds/descriptor.proto file, the directory containing the file must be specified using the -I option in the protoc command line. For example:

protoc --idl4_out=<outputdir> \
       --cpp_out=<outputdir> \
       --connext-cpp_out=<outputdir> \
       -I <NDDSHOME>/resource/proto \
       <input>

When using the single-phase code generation method, a similar rtiddsgen command is used, but the input file is the original .proto file instead of the generated IDL file. The following example generates source code directly from example.proto:

rtiddsgen -language C++11 \
          -standard PROTOBUF_CPP
          example.proto \
          -protocPath <path to protoc installation> \
          -protocOption=--idl4_out=<outputdir>

3.4. Generating Code for Multiple Files

Most projects use multiple .proto files with dependencies between them. These dependencies are typically expressed using import statements in the .proto files. For these projects, you need to make sure the code generation process respects the dependency order.

Note

If your project has multiple .proto files with dependencies, it is recommended to use the two-phase code generation method. This method simplifies the management of dependencies between files.

3.4.1. Integrating .proto files with dependencies

As an example, consider the following file structure:

.src/
├── a.proto
├── foo
│   └── b.proto
└── bar
    └── c.proto

Here, a.proto imports b.proto and c.proto using import statements:

import "common/b.proto";
import "utils/c.proto";

After processing a.proto with the IDL4 Converter Plugin, the generated a.idl would then have corresponding #include statements:

#include "foo/b.idl"
#include "bar/c.idl"

To ensure the generated #include statements are valid:

  • all imported .proto files must be converted to .idl files before a.idl can be processed by rtiddsgen.

  • the generated .idl files must be placed in a similar directory structure. For example:

    .build/       # generated by:
├── a.idl     # └── protoc --idl4_out=...
├── foo
│   └── b.idl
└── bar
    └── c.idl

If a similar ordering requirement existed between b.proto and c.proto, b.idl would have to be generated before c.idl can be processed. If the two files were independent, they could be processed simultaneously for faster processing in parallel.

In this example, code generation can be executed as follows using the two-phase code generation method:

  1. First, process all .proto files with protoc.

    protoc --idl4_out=build \
        --cpp_out=build \
        --connext-cpp_out=build \
        -I src \
        src/a.proto \
        src/foo/b.proto \
        src/bar/c.proto

This command compiles multiple related .proto files, generating both standard C++ code and Connext-specific integration code, with all output going to a single build directory.

  1. Then, process all .idl files with rtiddsgen.

    rtiddsgen -language C++11 \
          -standard PROTOBUF_CPP \
          -I build \
          build/a.idl \
          build/foo/b.idl \
          build/bar/c.idl

This command generates C++ code from the related IDL files that were converted from Protocol Buffers types in step 1. It processes IDL files organized in different directories and resolves cross-file dependencies using the #include path.

When code generation is complete, the following C++ files are generated and made available for compilation in the output directory:

.build/              # generated by:
├── a.pb.cc          # ├── protoc --cpp_out=... --connext-cpp_out=...
├── a.pb.h           # ├── protoc --cpp_out=... --connext-cpp_out=...
├── a.cxx            # ├── rtiddsgen -language C++11 -standard PROTOBUF_CPP
├── a.hpp            # ├── rtiddsgen -language C++11 -standard PROTOBUF_CPP
├── aPlugin.cxx      # ├── rtiddsgen -language C++11 -standard PROTOBUF_CPP
├── aPlugin.hpp      # └── rtiddsgen -language C++11 -standard PROTOBUF_CPP
├── foo
│   ├── b.pb.cc
│   ├── b.pb.h
│   ├── b.cxx
│   ├── b.hpp
│   ├── bPlugin.cxx
│   └── bPlugin.hpp
└── bar
    ├── c.pb.cc
    ├── c.pb.h
    ├── c.cxx
    ├── c.hpp
    ├── cPlugin.cxx
    └── cPlugin.hpp

Warning

Both protoc and rtiddsgen can process multiple input files from a single command line. However, when automating code generation, it is recommended to use a single input file for each invocation of these plugins.

This approach ensures that the length of the command-line invocation does not exceed system command-line length limits, which is a risk as the number of .proto files used by a project grows.

3.4.2. Managing dependencies

Managing these precise dependencies becomes increasingly complex as the number of input files grows. This complexity typically introduces additional maintenance overhead and makes a fully parallelized solution difficult to implement.

It is recommended to forego a bit of parallelization efficiency in favor of simpler build rules. That’s why we recommend using the two-phase code generation method when working with multiple .proto files with dependencies.
