5.7.6 Pre-Shared Key Protection

This example demonstrates how to use Pre-Shared Key (PSK) Protection to apply entry-level security. The Pre-Shared Key secures all the traffic from the start-up of a DDS Entity and restricts the communication only to Entities holding the correct pre-shared key seed. For more information, see Pre-Shared Key Protection in the RTI Security Plugins User's Manual.

In this example, you will start three instances of Shapes Demo; be sure to run each instance using the same domain.

1. Start an instance of Shapes Demo using the Security::LightweightSecurity profile. We'll call this instance Publisher1.
   1. Open a new instance of Shapes Demo using any domain.
   2. Go to Controls > Configuration, then select Stop.

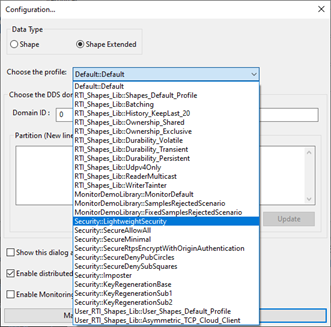

   3. In Choose the profile, select Security::LightweightSecurity, then click Start.





      See 4.3.5 Applying QoS from a Profile for additional information about starting Shapes Demo using a specific QoS profile.

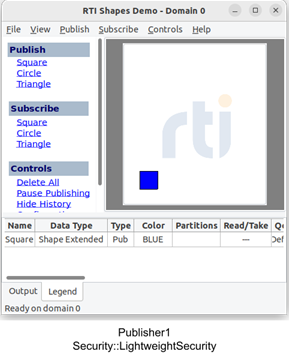

2. In Publisher1, publish a blue square.




3. Start a second instance of Shapes Demo using the same profile, Security::LightweightSecurity. We'll call this instance Subscriber1.



   Tip: To start another instance of Shapes Demo, select File > New Shapes Demo.


4. In Subscriber1, subscribe to squares.

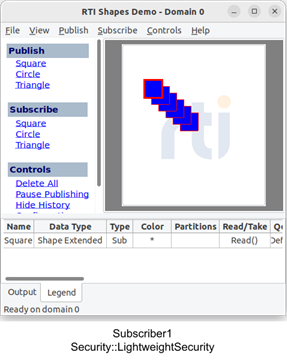

   The blue square published by Publisher1 is displayed in Subscriber1.


5. Start a third instance of Shapes Demo; do not apply a QoS profile. We'll call this instance Subscriber2.
6. In Subscriber2, subscribe to squares.

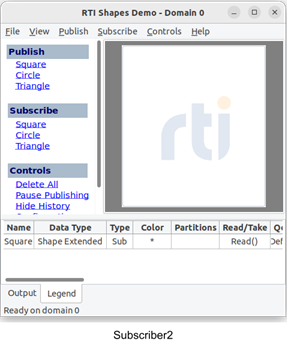

   The blue square published by Publisher1 does not appear in Suscriber2. That's because Publisher1 is configured to use Pre-Shared Key Protection, but Susbscriber2 is not.



To further understand why Subscriber2 is not receiving data from Publisher1, let's check a snippet of the Security::LightweightSecurity profile.

<property>

   <value>

      <element>

         <name>dds.sec.crypto.rtps_psk_secret_passphrase</name>

<value>str:1:dW5kZXIgY2hlc3Qgcm91bmQgZ2FpbiByZWxpZWYgbGlmdCBkZW55IGJpbmQdG9nZXRoZXIgYXdlc29ZSBtaXh0dXJlIGV0ZXJuYWwga
GFyZCBiYW5uZXIgdXJiYW4=</value>

      </element>

   </value>

</property>

The dds.sec.crypto.rtps_psk_secret_passphrase property sets the value of the pre-shared key seed and enables Pre-Shared Key Protection. In the above example, this property is not included in Subscriber2 because we did not apply the Security::LightweightSecurity profile in that instance.
