RTI Connext DDS Micro
Version 2.4.9
|
Library | ELOC |
---|---|
rti_me | 26723 |
discdpde | 3074 |
discdpse | 1585 |
rh_sm + wh_sm | 1629 |
rti_me_cert | 29937 |
Library name | Text (B) | Data (B) | BSS (B) |
---|---|---|---|
rti_me | 495191 | 628 | 6688 |
rti_me_discdpde | 51724 | 4 | 1612 |
rti_me_discdpse | 34265 | 4 | 1148 |
rti_me_rhsm | 15167 | 4 | 536 |
rti_me_whsm | 8351 | 4 | 520 |
rti_me_cpp | 226896 | 36 | 5384 |
Entity | Release Size (B) | Notes |
---|---|---|
DDS DomainParticipantFactory | 2104 | |
DDS DomainParticipant | 13232 | This is the memory for an empty participant. The memory used by each entity must be added as described for each entity. |
Type (registration) | 13 | function rti_me_heap.dds_c.type.size(type_name) return (13) + string.len(type_name) + 1 end |
DDS Topic | 117 | function rti_me_heap.dds_c.topic.size(topic_name) return (117) + string.len(topic_name) + 1 end |
DDS Publisher | 253 | |
DDS Subscriber | 253 | |
DDS DataReader | 3557 | function rti_me_heap.dds_c.datareader.size_w_rl(rl_ms,rl_mi,rl_mrw,rl_mrwi,rl_mrpw) return (2406) + (rl_ms*152) + (rl_mi*256) + (rl_mrw*372) + (rl_mrpw * 83) end |
DDS DataWriter | 3369 | function rti_me_heap.dds_c.datawriter.size_w_rl(rl_ms,rl_mi,wrl_mrr,wrl_mrpr) return (2447) + (rl_ms*115) + (rl_mi*72) + (wrl_mrr * 380) + (wrl_mrpr * 83) end |
RemoteParticipant | 597 | function rti_me_heap.dds_c.remote_participant.size(rl_max_locators) return (501) + (rl_max_locators * 24) end |
RemotePublication | 238 | function rti_me_heap.dds_c.remote_publication.size(topic_name,rl_max_locators) return (141) + string.len(topic_name) + 1 + (rl_max_locators * 24) end |
RemoteSubscription | 262 | function rti_me_heap.dds_c.remote_subscription.size(topic_name,rl_max_locators) return (165) + strlen(topic_name) + 1 + (rl_max_locators * 24) end |
Reader/Writer Pair (matching_reader_writer_pair_allocation) | 29 | |
Destination Port (max_destination_ports) | 79 | |
UDP Receive Port (max_receive_ports) | 330 |
DPDE Plugin | Release Size(B) | Notes |
---|---|---|
DPDE Plugin | 64696 |
DPSE Plugin | Release Size(B) | Notes |
---|---|---|
DPSE Plugin | 30828 |
Size | Demand | Samples | Samples/sec | Mbit/sec | Samples lost | Samples Rejected | CPU | Memory |
---|---|---|---|---|---|---|---|---|
16 | 10 | 35620 | 1780.799584 | 0.227942 | 0 | 0 | 9.898921 | 143.46875 |
16 | 110 | 328350 | 16416.046482 | 2.101254 | 0 | 0 | 24.697845 | 143.46875 |
16 | 210 | 544320 | 27210.156823 | 3.4829 | 0 | 0 | 35.042538 | 143.46875 |
16 | 310 | 877920 | 43877.788853 | 5.616357 | 0 | 0 | 28.588175 | 143.46875 |
Size | Demand | Samples | Samples/sec | Mbit/sec | Samples lost | Samples Rejected | CPU | Memory |
---|---|---|---|---|---|---|---|---|
32 | 10 | 35860 | 1792.954383 | 0.458996 | 0 | 0 | 9.049812 | 143.46875 |
32 | 110 | 325930 | 16295.972948 | 4.171769 | 0 | 0 | 25.349215 | 143.46875 |
32 | 210 | 529200 | 26449.881796 | 6.77117 | 0 | 0 | 37.385757 | 143.46875 |
32 | 310 | 826150 | 41289.491898 | 10.57011 | 0 | 0 | 32.985653 | 143.46875 |
Size | Demand | Samples | Samples/sec | Mbit/sec | Samples lost | Samples Rejected | CPU | Memory |
---|---|---|---|---|---|---|---|---|
64 | 10 | 35850 | 1792.158786 | 0.917585 | 0 | 0 | 9.19829 | 143.46875 |
64 | 110 | 328460 | 16421.164237 | 8.407636 | 0 | 0 | 24.647276 | 143.46875 |
64 | 210 | 517440 | 25862.537092 | 13.241619 | 0 | 0 | 38.53595 | 143.46875 |
64 | 310 | 851570 | 42570.352354 | 21.79602 | 0 | 0 | 31.244041 | 143.46875 |
Size | Demand | Samples | Samples/sec | Mbit/sec | Samples lost | Samples Rejected | CPU | Memory |
---|---|---|---|---|---|---|---|---|
128 | 10 | 35770 | 1787.97703 | 1.830888 | 0 | 0 | 9.397289 | 143.46875 |
128 | 110 | 326040 | 16300.114199 | 16.691317 | 0 | 0 | 25.247116 | 143.46875 |
128 | 210 | 543900 | 27189.019979 | 27.841556 | 0 | 0 | 35.042336 | 143.46875 |
128 | 310 | 891250 | 44552.284495 | 45.621539 | 0 | 0 | 27.843664 | 143.46875 |

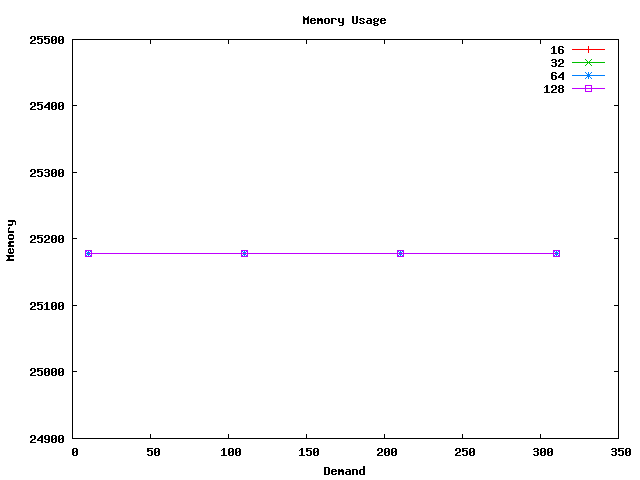

Size | Demand | Samples | Samples/sec | Mbit/sec | Samples lost | Samples Rejected | CPU | Memory |
---|---|---|---|---|---|---|---|---|
16 | 10 | 35620 | 1780.792551 | 0.227941 | 0 | 0 | 6.949135 | 25178.112 |
16 | 110 | 328350 | 16418.42448 | 2.101558 | 0 | 0 | 30.501419 | 25178.112 |
16 | 210 | 544320 | 27207.507381 | 3.482561 | 0 | 0 | 35.838539 | 25178.112 |
16 | 310 | 877920 | 43876.006033 | 5.616129 | 0 | 0 | 41.380985 | 25178.112 |
Size | Demand | Samples | Samples/sec | Mbit/sec | Samples lost | Samples Rejected | CPU | Memory |
---|---|---|---|---|---|---|---|---|
32 | 10 | 35860 | 1793.164626 | 0.45905 | 0 | 0 | 6.950584 | 25178.112 |
32 | 110 | 325930 | 16295.739111 | 4.171709 | 0 | 0 | 31.248301 | 25178.112 |
32 | 210 | 529200 | 26445.580745 | 6.770069 | 0 | 0 | 36.779663 | 25178.112 |
32 | 310 | 826150 | 41274.462166 | 10.566262 | 0 | 0 | 39.717907 | 25178.112 |
Size | Demand | Samples | Samples/sec | Mbit/sec | Samples lost | Samples Rejected | CPU | Memory |
---|---|---|---|---|---|---|---|---|
64 | 10 | 35850 | 1791.897398 | 0.917451 | 0 | 0 | 6.897621 | 25178.112 |
64 | 110 | 328460 | 16420.702867 | 8.4074 | 0 | 0 | 30.445511 | 25178.112 |
64 | 210 | 517440 | 25864.485268 | 13.242616 | 0 | 0 | 38.038673 | 25178.112 |
64 | 310 | 851570 | 42581.593872 | 21.801776 | 0 | 0 | 40.802658 | 25178.112 |
Size | Demand | Samples | Samples/sec | Mbit/sec | Samples lost | Samples Rejected | CPU | Memory |
---|---|---|---|---|---|---|---|---|
128 | 10 | 35770 | 1788.0732 | 1.830987 | 0 | 0 | 6.948287 | 25178.112 |
128 | 110 | 326040 | 16296.415341 | 16.687529 | 0 | 0 | 27.590338 | 25178.112 |
128 | 210 | 543900 | 27185.263802 | 27.83771 | 0 | 0 | 35.886875 | 25178.112 |
128 | 310 | 891250 | 44544.726988 | 45.6138 | 0 | 0 | 42.632782 | 25178.112 |

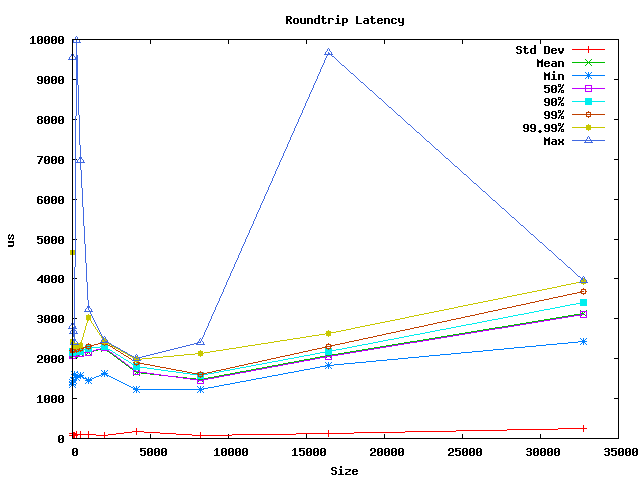

Size | Std Dev | Mean | Min | 50% | 90% | 99% | 99.99% | Max |
---|---|---|---|---|---|---|---|---|
16 | 122.467947 | 2094.504498 | 1406.825004 | 2080 | 2180 | 2200 | 4660 | 9551.824858 |
32 | 82.877257 | 2096.1166 | 1345.825005 | 2080 | 2160 | 2200 | 2420 | 2817.825037 |
64 | 82.252676 | 2104.682501 | 1465.824987 | 2120 | 2180 | 2220 | 2320 | 2684.824956 |
128 | 67.789854 | 2117.792401 | 1592.825023 | 2140 | 2180 | 2220 | 2320 | 2415.825003 |
256 | 105.242318 | 2125.0242 | 1540.82486 | 2140 | 2180 | 2220 | 2300 | 9978.825082 |
512 | 94.796087 | 2124.684399 | 1567.825065 | 2140 | 2180 | 2260 | 2320 | 6972.825011 |
1024 | 96.414632 | 2148.7931 | 1457.824926 | 2160 | 2260 | 2300 | 3030 | 3242.825014 |
2048 | 65.870001 | 2260.414699 | 1629.824839 | 2280 | 2300 | 2400 | 2440 | 2451.825044 |
4096 | 168.053758 | 1646.328301 | 1218.824969 | 1690 | 1800 | 1900 | 1980 | 1997.824847 |
8192 | 73.06396 | 1484.508701 | 1234.824858 | 1460 | 1570 | 1600 | 2140 | 2408.82495 |
16384 | 125.448793 | 2082.796 | 1840.825049 | 2060 | 2180 | 2300 | 2640 | 9665.825027 |
32768 | 244.982571 | 3126.7615 | 2425.825079 | 3120 | 3420 | 3690 | 3930 | 3962.824908 |
