Information that accompanies each sample that is read or taken. More...

#include <dds_c_subscription.h>

Public Attributes
DDS_SampleStateKind	sample_state
	The sample state of the sample.

DDS_ViewStateKind	view_state
	The view state of the instance.

DDS_InstanceStateKind	instance_state
	The instance state of the instance.

DDS_InstanceHandle_t	instance_handle
	Identifies locally the corresponding instance.

DDS_InstanceHandle_t	publication_handle
	Identifies locally the DataWriter that modified the instance.

DDS_Boolean	valid_data
	Indicates whether the `DataSample` contains data or else it is only used to communicate a change in the `instance_state` of the instance.

struct DDS_Time_t	source_timestamp
	The timestamp when the sample was written by a DataWriter.

struct DDS_Time_t	reception_timestamp
	<<eXtension>> The timestamp when the sample was committed by a DataReader.

struct DDS_SequenceNumber_t	publication_sequence_number
	<<eXtension>> The publication sequence number.

Detailed Description

Information that accompanies each sample that is read or taken.

Interpretation of the SampleInfo

The DDS_SampleInfo contains information pertaining to the associated Data instance sample including:

the sample_state of the Data value (i.e., if it has already been read or not)
the view_state of the related instance (i.e., if the instance is new or not)
the instance_state of the related instance (i.e., if the instance is alive or not)
the valid_data flag. This flag indicates whether there is data associated with the sample. Some samples do not contain data indicating only a change on the instance_state of the corresponding instance.
The source_timestamp of the sample. This is the timestamp provided by the DDSDataWriter at the time the sample was produced.

See also: DDS_SampleStateKind, DDS_InstanceStateKind, DDS_ViewStateKind, DDS_SampleInfo::valid_data

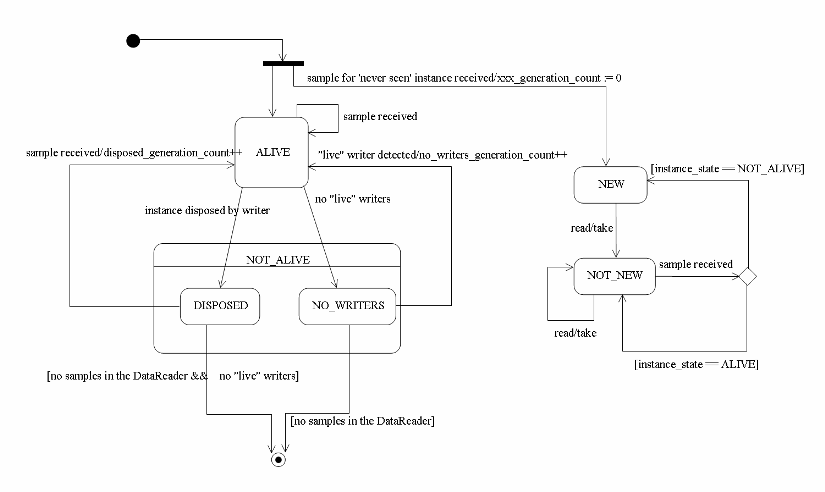

"Statechart of the instance_state and view_state of a single instance"

Member Data Documentation

◆ sample_state

DDS_SampleStateKind DDS_SampleInfo::sample_state

The sample state of the sample.

Indicates whether or not the corresponding data sample has already been read.

See also: DDS_SampleStateKind

◆ view_state

DDS_ViewStateKind DDS_SampleInfo::view_state

The view state of the instance.

Indicates whether the DDSDataReader has already seen samples for the most-current generation of the related instance.

See also: DDS_ViewStateKind

◆ instance_state

DDS_InstanceStateKind DDS_SampleInfo::instance_state

The instance state of the instance.

Indicates whether the instance is currently in existence or, if it has been disposed, the reason why it was disposed.

See also: DDS_InstanceStateKind

◆ instance_handle

DDS_InstanceHandle_t DDS_SampleInfo::instance_handle

Identifies locally the corresponding instance.

◆ publication_handle

DDS_InstanceHandle_t DDS_SampleInfo::publication_handle

Identifies locally the DataWriter that modified the instance.

The publication_handle is the same DDS_InstanceHandle_t that is returned by the operation DDSDataReader::get_matched_publications and can also be used as a parameter to the operation DDSDataReader::get_matched_publication_data.

◆ valid_data

DDS_Boolean DDS_SampleInfo::valid_data

Indicates whether the DataSample contains data or else it is only used to communicate a change in the instance_state of the instance.

Normally each DataSample contains both a DDS_SampleInfo and some Data. However there are situations where a DataSample contains only the DDS_SampleInfo and does not have any associated data. This occurs when the RTI Connext DDS Micro notifies the application of a change of state for an instance that was caused by some internal mechanism (such as a timeout) for which there is no associated data. An example of this situation is when the RTI Connext DDS Micro detects that an instance has no writers and changes the corresponding instance_state to DDS_NOT_ALIVE_NO_WRITERS_INSTANCE_STATE.

The application can distinguish whether a particular DataSample has data by examining the value of the valid_data flag. If this flag is set to DDS_BOOLEAN_TRUE, then the DataSample contains valid Data. If the flag is set to DDS_BOOLEAN_FALSE, the DataSample contains no Data.

To ensure correctness and portability, the valid_data flag must be examined by the application prior to accessing the Data associated with the DataSample and if the flag is set to DDS_BOOLEAN_FALSE, the application should not access the Data associated with the DataSample, that is, the application should access only the DDS_SampleInfo.

◆ source_timestamp

struct DDS_Time_t DDS_SampleInfo::source_timestamp

The timestamp when the sample was written by a DataWriter.

◆ reception_timestamp

struct DDS_Time_t DDS_SampleInfo::reception_timestamp

<<eXtension>> The timestamp when the sample was committed by a DataReader.

The reception_timestamp is platform dependent and depends on the port of RTI Connext DDS Micro to the platform. Typically, it represents the current local time, but that may not always be the case. E.g, some platforms may not have a real-time clock and the system time is the time since the system was started.

A reception_timestamp equal to zero may mean any of the following:

RTI Connext DDS Micro was unable to read the current time
The system time is not incrementing
Zero time has elapsed between the system was started and the first sample was committed.

◆ publication_sequence_number

struct DDS_SequenceNumber_t DDS_SampleInfo::publication_sequence_number

<<eXtension>> The publication sequence number.
