3.4.3. Handling Domains

In the Domain tab, you can add all your domains and Topics. You can organize them into Domain Libraries.

To start a new Domain Library, use the button or right-click the Domain Libraries tree:

To add a Domain Library, enter the Library Name and the destination file:

Then you can add a domain to the new library by using the button or by right-clicking the Domain Library:

A pop-up window will guide you to enter the Domain Name, the Domain ID, and the destination file:

Once the domain is created, you can register types with the domain and add a new Topic in the Structured view.

To register a new type, select in the Registered types table; a pop-up will allow you to choose a Type name, Registered name, and Type kind from a list:

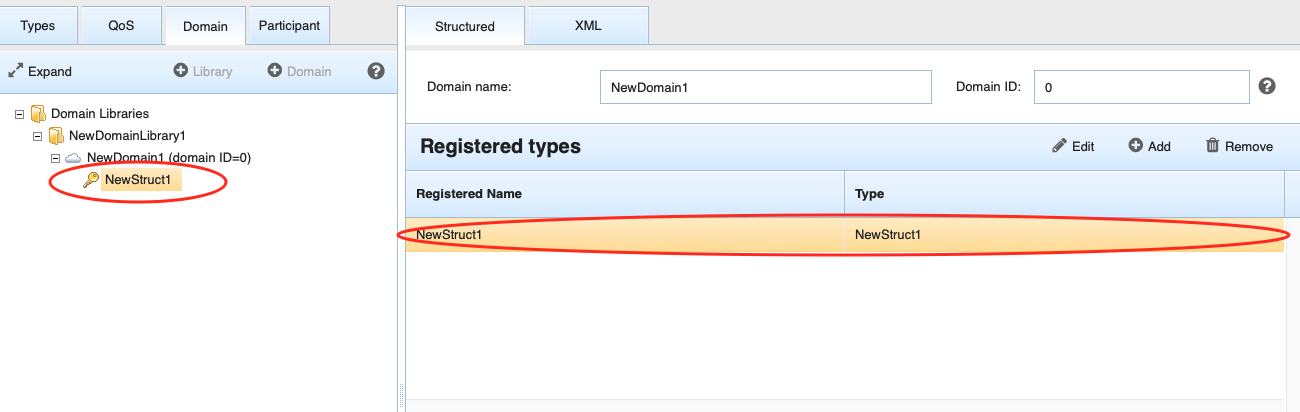

After you click OK, the new registered type will appear in the left tree and in the Registered types table:

To register a new Topic, click in the Topics table. A pop-up will open:

Enter your topic name and select one of the available Registered type names from the drop-down menu.

After you click OK, the new topic will appear in the left tree and in the main panel:

Of course, you can also see the XML definition in the XML tab:
