7.10. Thread Safety

All public APIs have a note about thread-safety included in the API reference manuals. It is important that an application does not violate thread-safety guidelines. RTI Connext Cert creates one critical section per DomainParticipant to protect resources used by the DomainParticipant.

Note

Although Connext Cert may create multiple mutexes, these are used to protect resources in the OSAPI layer, and are thus not relevant when using the public DDS APIs.

7.10.1. Calling DDS APIs from listeners and callbacks

When DDS is executing in a listener, it holds a critical section. Thus it is important to return as quickly as possible to avoid stalling network I/O.

There are no deadlock scenarios when a listener calls Connext Cert DDS APIs from the same DomainParticipant (and contained entities) that the listener was called from, as shown in the diagram below:

../_images/ThreadSafety-OK.png

Warning

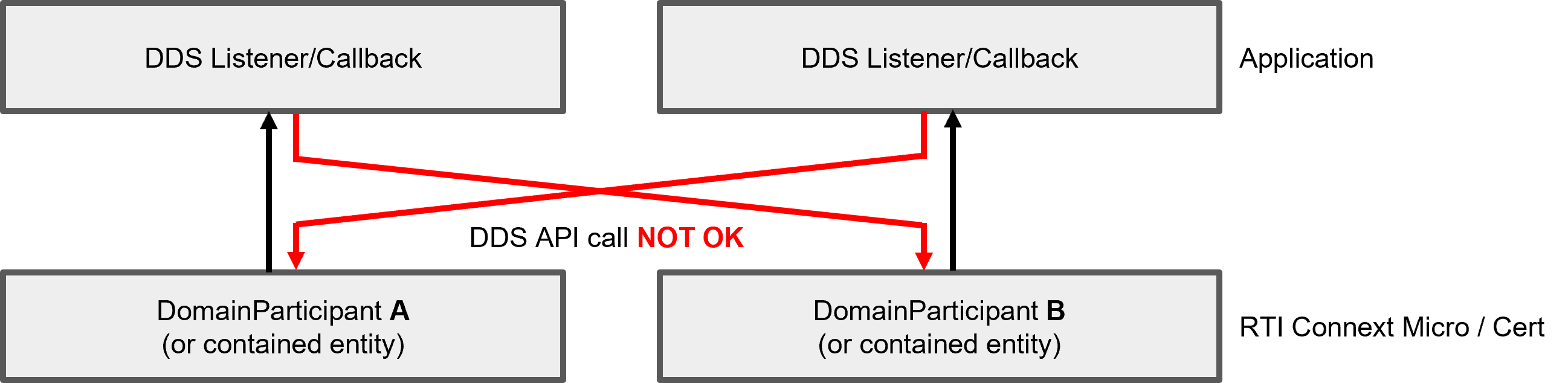

It is not safe to call DDS APIs from a different DomainParticipant than the one listener was called from, as shown in the diagram below. This may result in a deadlock situation.

../_images/ThreadSafety-NOK.png

Warning

There are no checks on whether or not an API call will cause problems, such as deleting a participant when processing data in on_data_available from a reader within the same participant.

7.10.2. Calling DDS APIs from a type-plugin

A user type-plugin that is registered with the DomainParticipant is subject to the following rules:

  • The key kind is constant.

  • The plugin is constant for a given DDS entity (Topic, DataWriter, or DataReader).

  • The plugin data must be protected if thread safety is a concern, as it is user data and not protected by Connext Cert.

Note

A type-plugin generated from an IDL file with the rtiddsgen IDL compiler included with Connext Cert will satisfy these rules.
