3. Observability Framework Deployments

This section describes deployment options for the Observability Framework components and supporting third-party software used for telemetry data storage and visualization. There are two deployment options:

• Evaluation Deployment: This deployment is intended for initial product evaluation only. All Observability Framework and third-party components are deployed and run in a single host.

• Production Deployment: This deployment is intended for production use. Observability Framework and third-party components are deployed separately.

3.1. Before you Begin

Each deployment option requires the Monitoring Library 2.0 component to collect telemetry data from Connext applications. It is included with Connext Professional as both a shared and a static library, named rtimonitoring2.

Before deploying the other Observability Framework components needed for your deployment scenario and use case, you must instrument your Connext applications with Monitoring Library 2.0. See the Monitoring Library 2.0 chapter for details on how to enable and configure it.

3.2. Evaluation Deployment

To evaluate Observability Framework, Connext Professional enables you to deploy and run Collector Service and third-party components Prometheus, Grafana Loki, Grafana, OpenTelemetry Collector (optional), and NGINX (optional) using Docker Compose™ in a single Linux® x86 host. This Docker Compose deployment allows you to evaluate both use cases of the Observability Framework: real-time remote debugging and operational monitoring.

Warning

This deployment option is not intended for production use. It is intended for initial product evaluation only.

Everything required to install and run Observability Framework for evaluation is included in Connext Professional. For installation details, see Installing and Running Observability Framework for Evaluation. For an example you can use to evaluate Observability Framework, see the Getting Started Guide.

An evaluation installation provides two deployment scenarios: one without OpenTelemetry Collector and one with OpenTelemetry Collector. Both deployments can be configured to be secure or non-secure and to work on a LAN or WAN.

Figure 3.1 RTI Observability Framework without OpenTelemetry Collector

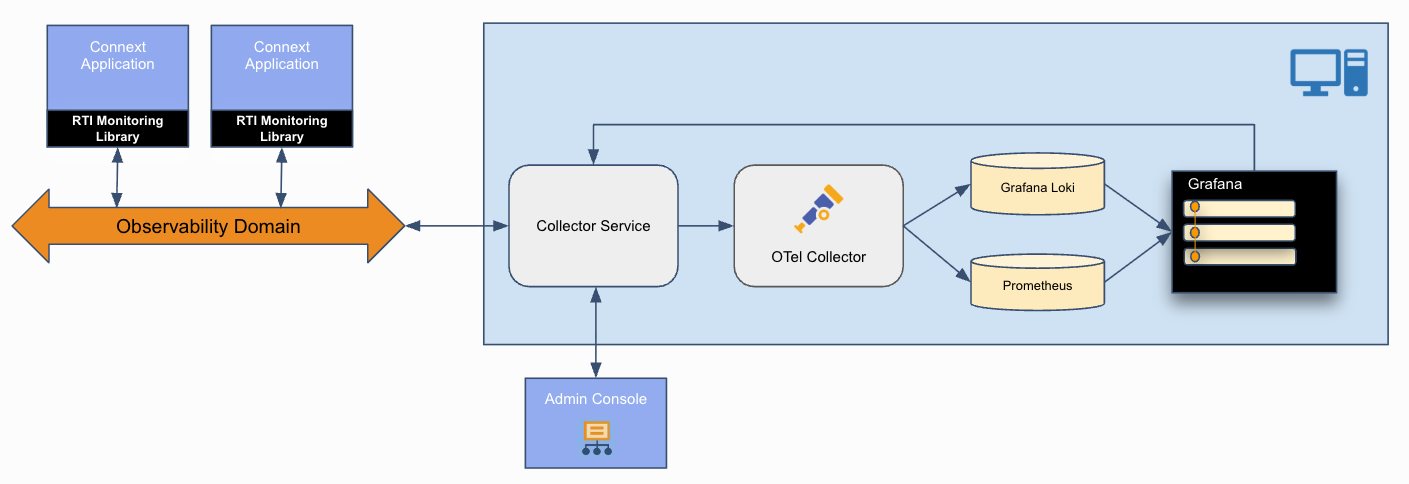

Figure 3.2 RTI Observability Framework with OpenTelemetry Collector

3.3. Production Deployments

In a production environment, the Observability Framework and supporting third-party components are deployed separately—potentially on different hosts or pods within a Kubernetes cluster. Monitoring Library 2.0 is installed with Connext Professional, and Collector Service must be installed separately from a Docker image. The third-party components Prometheus, Grafana Loki, Grafana, OpenTelemetry Collector (optional), and NGINX (optional) must also be installed separately, if using.

The Collector Service component is distributed as a Docker image hosted in Docker Hub. This is the same publicly available image used by the Docker Compose installation described in Evaluation Deployment, and it requires a valid RTI license to run. For details on how to use the Collector Service Docker image, see the Collector Service article in Docker Hub.

A production installation provides several deployment scenarios, described in the following sections. Each scenario notes the built-in configuration(s) required to deploy the Collector Service instances. For more information, see the Built-in Configurations section.

3.3.1. Single Collector Service Instance

This production deployment scenario is the simplest: a single Collector Service instance is deployed to collect telemetry data from multiple Connext applications. The instance is configured to store telemetry data in Prometheus and Grafana Loki, and to provide remote debugging telemetry to Admin Console.

Figure 3.3 Single Collector Service Instance

3.3.2. Single Layer of Collector Service Instances

This production deployment scenario includes multiple Collector Service instances in a single layer. Each Collector Service instance collects telemetry data from multiple Connext applications and makes it available to Prometheus and Grafana Loki.

This scenario is not well-suited for remote debugging because Admin Console can only connect to a single Collector Service instance at a time.

Figure 3.4 Single Layer of Collector Service Instances

3.3.3. Multiple Layers of Collector Service Instances

This deployment scenario includes two layers of Collector Service instances. The first layer collects telemetry data from multiple Connext applications and forwards it to the second layer containing a single Collector Service. The second layer is configured to store telemetry data in Prometheus and Grafana Loki, and to provide remote debugging telemetry to Admin Console.

The first layer can be horizontally scaled by adding more Collector Service instances to handle more applications or cover multiple geographically distributed sites. These instances forward their data to a smaller number of second-layer Collector Service instances—often just one—that aggregate and export the consolidated telemetry to external systems.

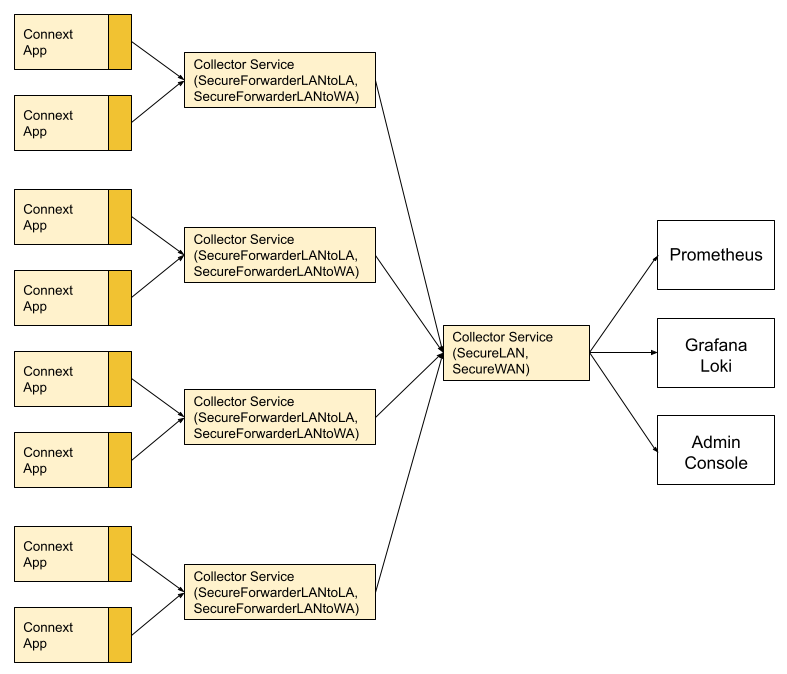

Figure 3.5 Multiple Layers of Collector Service Instances

3.3.4. Multiple Layers of Collector Service Instances with OpenTelemetry Collector

In this production deployment scenario, the Collector Service on the last layer is configured to forward telemetry data to an OpenTelemetry Collector. This scenario allows for integration with third-party observability backends other than Prometheus and Grafana Loki. The OpenTelemetry Collector can be configured to forward the telemetry data to an OpenTelemetry-compatible backend.

Figure 3.6 Multiple Layers of Collector Service Instances with OpenTelemetry Collector
