3.2. DDS Entities

The main classes extend an abstract base class called a DDS Entity. Every DDS Entity has a set of associated events known as statuses and a set of associated Quality of Service policies (QoS policies). In addition, a Listener may be registered with the Entity to be called when status changes occur. DDS Entities may also have attached DDS Conditions, which provide a way to wait for status changes. Figure 3.1 presents an overview in a UML diagram.

../_images/EntitiesUML.png

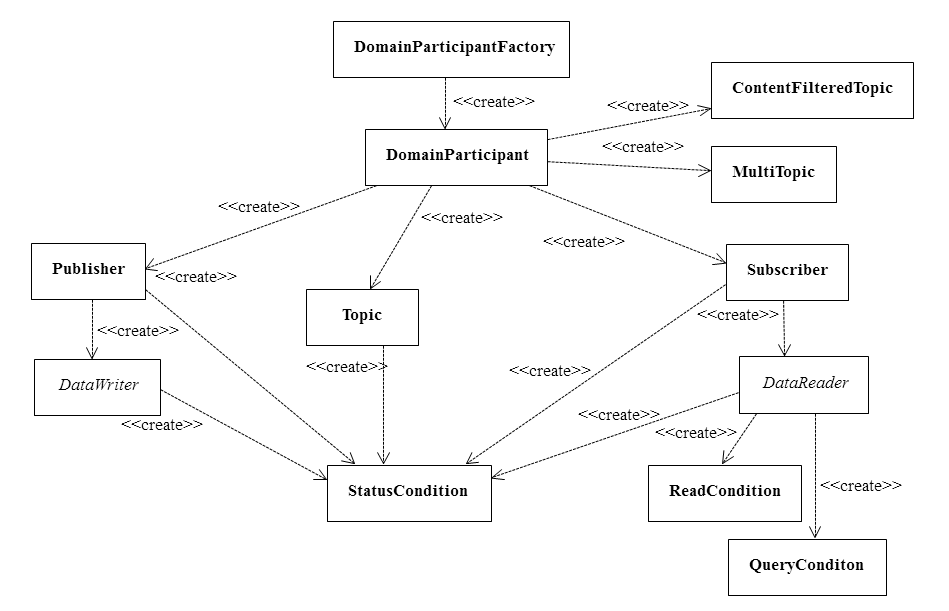

Figure 3.1 Overview of DDS Entities

Please note that RTI Connext Micro does not support the following:

  • MultiTopic

  • ContentFilteredTopic 1

  • ReadCondition

  • QueryConditions

1

ContentFilteredTopics are not supported, but Connext Micro does support filtering data with a QoS policy. See Content Filtering for more information.

For a general description of DDS Entities and their operations, please refer to the DDS Entities chapter in the RTI Connext DDS Core Libraries User’s Manual. Note that RTI Connext Micro does not support all APIs and QosPolicies; please refer to the C API Reference and C++ API Reference documentation for more information.
